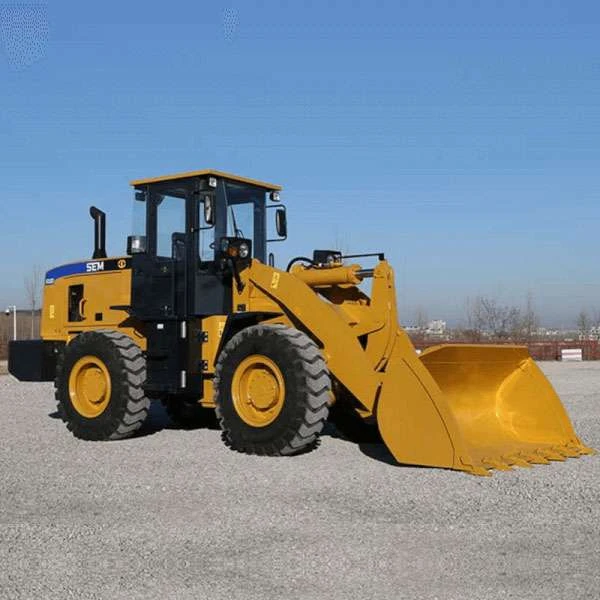

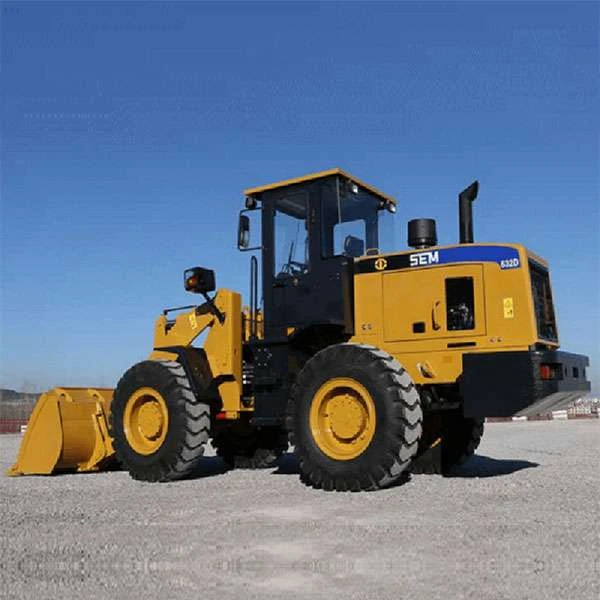

China 3 ton wheel loader 632D from Caterpillar
Features of the 3m3 wheel loader,
3m3 loader SEM wheel loader price 652D featres,
SEM wheel loader 632D Multiple applications,
- Large volume earth moving
- Hopper feeding
- Coal loading
- Sand loading
- Construction
- Mining
SEM wheel loader 632D adopts Weichai powerful engine
- High efficiency
- Low fuel consumption
Advanced cooling system
Solid structure
Machine Applications
- The sturdy design of the 632D makes it the perfect machine for large volume earthmoving applications
- In Hopper feeding and Coal loading applications the 632D can load more, move faster and burn less fuel
- Multiple work tools are available for increased versatility
Specification of SEM wheel loader 632D
| Bucket | 1.7m 3 |
| Rated load | 3000kg |
| Operation weight | 9970kg |
| Static tilting load at full steering position | 60kn |
| Max digging force | 128kn |
| Maximum tractive force | 91kn |
| Max. climbing gradient | 30° |
| Lifting time | 4.9s |
| The sum of three items | 9s |
| Dimension | 6954mm×2440mm×3190mm |
| Engine | |
| Model | Wechai |
| Rated power | 92kw |
| Rated speed | 2300r/min |
| Bore × stroke | 100mm× 125mm |
| Max. torque | 460 kn/m |
| Displacement | 7.13 L |
| Brake system | |
| Traveling break type | Air assisted caliper disc type four wheel brake |
| Parking break type | Shoe break |
| Transmission system | |
| Hydraulic torque converter | Single-stage three elements |
| Gear box | SEM TRN150 Arbre fixe |
| 1st | 7.4km |
| 2nd | 13.7km |
| 3rd | 25.3km |
| 4th | 41.5km |
| Reverse 1st | 9.3km |
| 2nd | 30.5km |
| Steering system | |
| Type | Articulated transfer |
| Steering angle | 38° |
| Hydraulic system | Load-sensing hydraulic steering system |
| Axle | |
| Type | All wheel drive , Fixed front axle , swing rear axle ,±12° |
| Work hydraulic system | |
| Working system pressure | 16.5Mpa |
| Bucket delivery time | 1.07s |
| Movable arm lifting time | 4.82s |
| Descending time of movable arm | 3.24s |
| Working Valve Control Type | First manipulation |
| Tires | |
| Standard configuration size of tyre | 17.5-25 |
| Oil tank capacity | |
| Fuel tank | 151L |
| Hydraulic oil tank | 138L |
