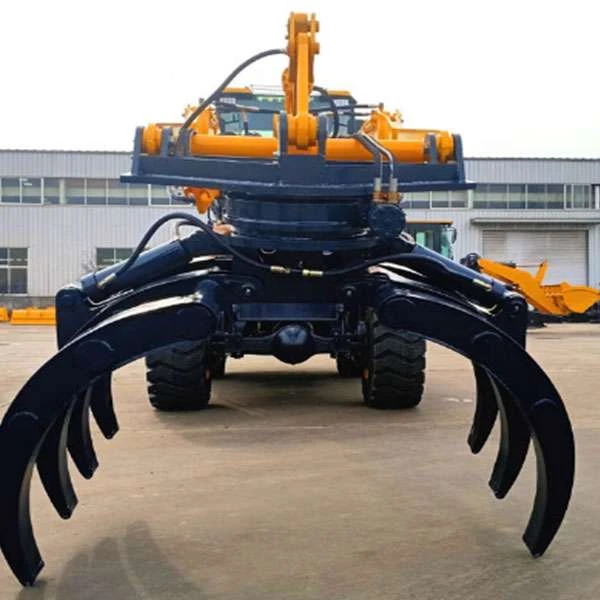

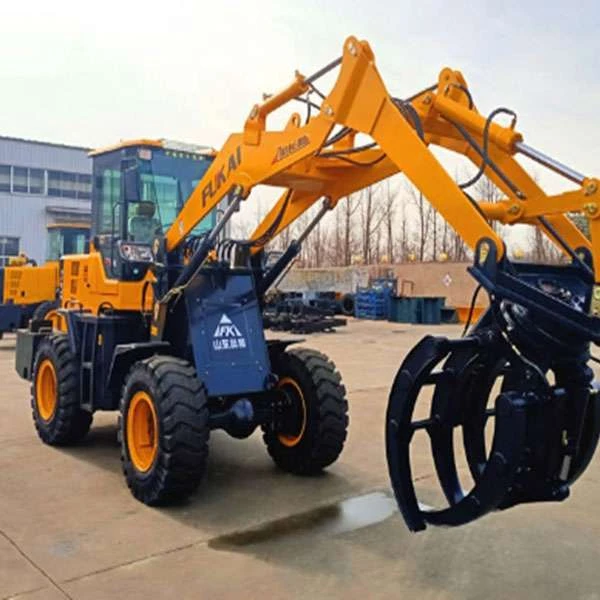

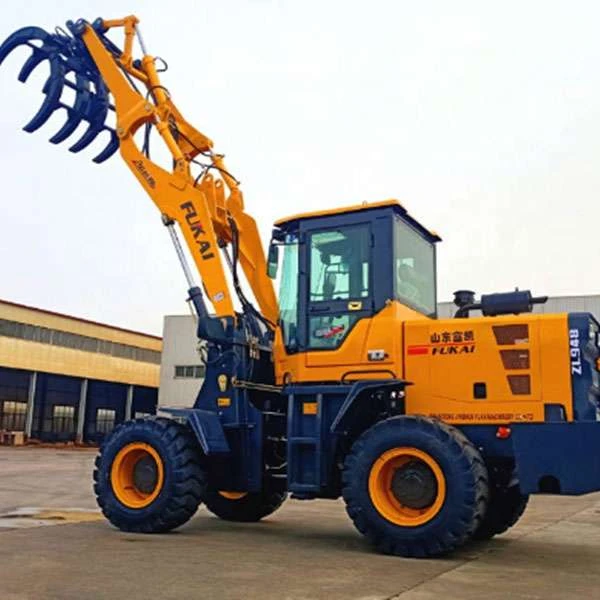

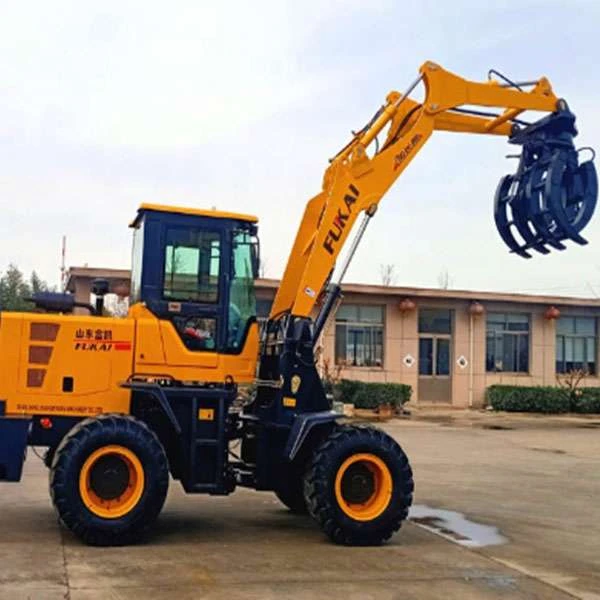

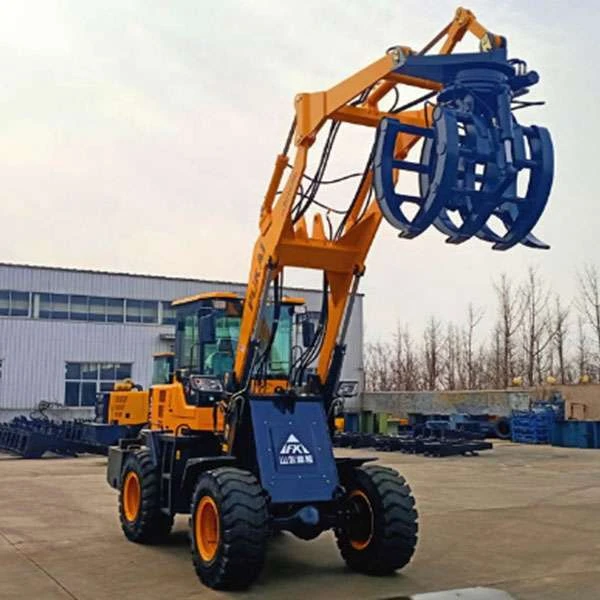

Good price wheel loader with grapple sugar loader
Specification of low price sugar cane loader,
| Basic Parameter | Model | ET-940 |
| Gross weight | 5400kg | |
| Rated Load | 2000kg | |
| Overall Dimension | 6500*2200*3000mm | |
| Bucket capacity | 1.4m^3 | |
| Max.Dumping Height | 4850mm | |
| Max.Dumping Distance | 1050mm | |
| Bucket width | 2.2m | |
| Max. Speed | 30km/h | |
| Air conditioner | Optinal | |
| Pallet fork | ||
| Snow bucket | ||
| High dump bucket | ||
| Sweeper | ||
| Reverse camera | ||
| 4in1 bucket | ||
| Quick-hitch | ||
| Color | ||
| Engine | Model | YUNNEI YN38GBZ |
| Engine power | 76kw/102hp at rated engine speed 2400rpm | |
| Pattern | Direct injection,water-cooled,turbocharged,diesel engine | |
| Transmission System | Gearbox model | Hydraulic transmission |
| Gear shift | 4 forward 4 reverse | |
| Type | Automatic | |
| Axle | Planetary rigid axles(hub) | |
| Hydraulic system | Open hydraulic system/36L | |
| Hydraulic pump | Fixed-displacement gear pump;open system | |
| Hydraulic pressure | 16mpa/160bar | |
| Drive system | Torque converter hydraulic transmission | |
| Operating | Joystick control | |
| working pump | Gear pump | |
| Steering System | Steering System | Articulated frame steering |
| Braking System | Driving brake | Hydraulic-air disc brake,caliper on both axle |
| parking brake | Mechanical drum brake on gearbox | |
| Tyre | Model | 17.5-25(standard) |
| Pressure of tire | 0.25-0.35mpa | |
| Package | 2 Units in 40HQ | |
Qingdao Elite Machinery Co., Ltd-top machinery supplier in China.
Welcome to inquire anytime. Quotation with best price will be sent ASAP.
